Cable Pin Out

inXsol provides client support internationally for product deployment,  trade shows, demonstrations etc. This reference page offers ready access to data for wiring cabling extensions or troubleshooting.

Since its original posting over 10 years ago for internal use this reference page has recieved thousands of hits and numerous link references.

As a fellow field engineer for part of my career I am happy to offer access to this information. Welcome.

10 Base T and 100 Base T Cross Over Cable

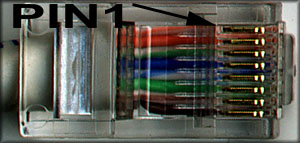

	The connector to the left is an RJ45 type. The photo is taken looking at the bottom where the pins are exposed. Note the color coding of the wires from the top down. For a straight cable - like from a HUB to a PC, the wires match one for one. To connect two hubs - use a crossover cable. To connect two PC's directly to each other use a crossover cable.

---

Hercules/Monochrome Adapter

Pin#	Label	Function
1	GND	Ground
2	GND	Ground
3	N.C.	Not Connected
4	N.C.	Not Connected
5	N.C.	Not Connected
6	INTENSITY	Intensity
7	VIDEO	TTL video signal
8	H-SYNC	Horizontal Synch (18.432KHz)
9	V-SYNC	Vertical Synch (50Hz)

---

VGA Adapter

Pin#	Label	Function
1	RED	Red color signal
2	GREEN	Green color signal
3	BLUE	Blue color signal
4	ID2	Monitor identification bit 2
5	N.C.	Not Connected
6	GND-RED	Ground Red signal
7	GND-GREEN	Ground Green signal
8	GND-BLUE	Ground Blue signal
9	N.C.	Not Connected
10	GND-SYNC	Ground Sync signal
11	ID1	Monitor identification bit 1
12	ID0	Monitor identification bit 0
13	H-SYNC	Horizontal Synchronization
14	V-SYNC	Vertical Synchronization
15	N.C.	Not connected

---

Paper Sizes

The following are paper size standards.
A0	841 x 1189 millimeters (33.13 x 46.85 inches)
A1	594 x 841 millimeters (23.40 x 33.13 inches)
A2	420 x 594 millimeters (16.55 x 23.40 inches)
A3	297 x 420 millimeters (11.70 x 16.55 inches)
A4	210 x 297 millimeters (8.27 x 11.70 inches)
A5	148 x 210 millimeters (5.83 x 8.27 inches)
A	8.5 x 11 inches (216 x 279 millimeters)
B	11 x 17 inches (279 x 432 millimeters)
B4	250 x 353 millimeters (9.84 x 13.90 inches)
B5	176 x 250 millimeters (6.93 x 9.84 inches)
C	17 x 22 inches (432 x 559 millimeters)
C4	229 x 324 millimeters (9.01 x 12.76 inches)
C5	162 x 229 millimeters (6.38 x 9.02 inches)
D	22 x 34 inches (559 x 864 millimeters)
DL	110 x 220 millimeters (4.33 x 8.66 inches)
E	34 x 44 inches (864 x 1118 millimeters)
10x13_ENVELOPE	10 x 13 inches (254 x 330 millimeters)
9x12_ENVELOPE	9 x 12 inches (229 x 305 millimeters)
BUSINESS_ENVELOPE	4.13 x 9.5 inches (105 x 241 millimeters)
EXECUTIVE	7.5 x 10 inches (191 x 254 millimeters)
LEDGER	11 x 17 inches (279 x 432 millimeters)
LEGAL	8.5 x 14 inches (216 x 356 millimeters)
LETTER	8.5 x 11 inches (216 x 279 millimeters)
LP	13.7 x 11 inches (348 x 279 millimeters)
VT	8 x 5 inches (203 x 127 millimeters)
